Home > Products > Materials > Polyurethane Heat Retaining Panel

PU PIR HVAC sandwich panel

FOB Price:

US 4.5-7 / Square Meter

Min.Order Quantity:

1000 Square

Supply Ability:

10000 Square per Meter/Square

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/P,T/T

Brand:

Huahai

Products Model:

HH-TZ2

Products Details
Company Profile

Quick Details

Brand Name: Huahai

Model Number: HH-TZ2

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: air duct panel export standard plastic bag and carton,10pcs per pack
Delivery Detail: with 7 days after receivin the deposit money

Specifications

HVAC PU/PIR sandwich panel
1.light weight
2.highly thermal resistance
3.low vapour permeability

HVAC PU/PIR sandwich panel

PRODUCT INTRODUCTION

HVAC PU/PIR sandwich panel

does not need any further insulation and is installed in a single fix. Light weight and installation speed are among the features of pre-insulated aluminium duct work, it's a new thermal insulation material, with excellent fire performance, low thermal conductivity, ligth weight, green and environmental protection, also save cost. It is used for HVAC Ducting, buliding and construction.

PRODUCT SPECIFICATION

Data sheet of PU air duct panel		Data sheet of PIR air duct panel
1	PU foam Density : 45-50kg/m3	PIR foam Density : 50-55kg/m3
2	Thermal Conductivity : 0.022W/M.K	Thermal Conductivity : 0.019W/M.K
3	Compressing Strength : 300KPa	Compressing Strength : 300KPa
4	Aluminum Foil Thick : 60-80 micron	Aluminum Foil Thick : 60-80 micron
5	Bending Strength : 1.05MPa	Bending Strength : 1.05MPa
6	Fire Proof Performance : Class"B"	Fire Proof Performance : Class"O"
7	Water Absorbing 1.9%	Water Absorbing 1.9%
8	Smoke Density : 2%	Smoke Density : 2%
9	Working Temperature : -150°C to 150°C	Working Temperature : -150°C to 150°C
Dimension		Dimension
1	2950/3950x1200x20	2950/3950x1200x20
2	2950/3950x1200x25	2950/3950x1200x25
3	2950/3950x1200x30	2950/3950x1200x30
Certificates		Certificates
1	ISO 9001:2008	Our products passed the British standard test
2	ISO 14001:2004	BS476 part6 and part7, UL94, UL7614, ASTM
		E84-05,and got certificates fireproof class"O"
		ISO 9001:2008
		ISO 14001:2004

PRODUCT PROPERTIES

It has low thermal conductivity.Its insulation performance is good, both energy conservation and no condensation phenomenon. It is alone forefront in the air conditioning duct market with its light weight to reduce characteristics

PRODUCT ADVANTAGES

1.Independent intellectual property rights of the raw material production technology.

2.The leading production technology,continuous composite technoloy without glue,the national intiative.

3.Less smoke,non-toxic,energy saving and environment protection

4.Low conductivity,strong thermal insulation property

5.Widely applied,effectively matched

6.Strong sound absorption

7.Simple and easy for construction,saving the construction time

PRODUCT USAGES

It can offers a high performance, light weight and robust ductwork system that requires only a single fix installation process. It is widely used in the ventilation systems of central air conditioning units in hospital, hotel, market, supermarket, guesthouse, airport, stadium, workshop, food store, pure project and so on

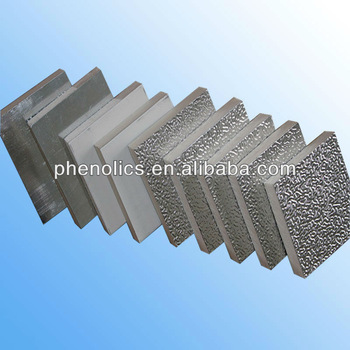

PRODUCT PICTURES

HUAHAI HVAC Air Duct Panel Type:

1.Aluminum foil /Galvanized Iron /Color steel Phenolic air duct panel

2.Aluminum foil /Galvanized Iron /Color steel PUR air duct panel

3.Aluminum foil PIR air duct panel

If you have any needs of our HVAC Air duct panel, please contact me freely.

olivia zhang

Export Manager

Skype:olivialoading

Tel: 86-632-5598006

Mob: 86-18266265959

http://www.hh-phenolic.cn

http://www.phenolics.com.cn

Established in 2002 Tengzhou Huahai Group is a high and new technology enterprise which is located in Tengzhou City,Shandong Province China.Our group covers an area of 66,670 square meters. and has 612 employees.
Our main products are, HVAC Phenolic foam air ducting panel ,Heat resistant insulation board Pre-insulated PU air ducting panel,PU sandwich panels and PU Cold storage panel .
The primary members of the group include
Tengzhou City Huahai New Insulation Materials Co., Ltd.
Tengzhou Jutong Import & Export Trade Co.,ltd
Shandong Plant Co.,ltd
Huahai New Thermal Insulation Materials Co., Ltd. established in 2002, developed Phenolic foam composite board continuous production process with the cooperation of some universities and institutes. The new process ranked among the first in the world and it surmount the traditional moulding production process and was the first one in China which can produce continuously. The production line was praised as "the first line in China" by "China Building Materials News" and the experts. Moreover, aluminum foils and phenolic foam composite boarsd have passed the evaluation of provincial level scientific and technological achievement test. We have attained IS09001:2000 Quality Management System Certification and IS014001:2004 Environmental Management System Certification and have been elected as the standing committee member of China Thermal-Sound-Insulation Material Association.
We will follow the spirit of "build environmentally friendly home" to produce insulation and fireproof composite boards with advanced technology. We will build a phenolic city and make Huahai Group the largest phenolic foam production base in China with the top technology, quality and service.
